Gold Beneficiation Process Guide: Gravity Separation, Flotation & Cyanidation Method
Unlock the secrets of efficient gold beneficiation. This comprehensive guide details essential process flows, comparing Gravity Separation, Froth Flotation, and Cyanidation (CIP/CIL). Learn to optimize crushing, grinding, and tailings management for maximum gold recovery and operational efficiency.
Apr 22nd,202613 Views
Gold ore beneficiation is not a simple physical separation but a complex engineering system based on mineralogical characteristics. Its core goal is to concentrate low-grade ore into high-grade gold concentrate or alloy gold through physical and chemical means. The design of the process flow varies significantly for different ore properties (such as placer gold, quartz vein gold ore, and refractory sulfide ore).
1. The key before beneficiation: ore property analysis
At the beginning of the process design, detailed beneficiation tests must be conducted on the ore.
Particle size distribution: Is gold present as coarse-grained individual particles, or is it finely encapsulated in sulfides?
Mineral association: Does it contain interfering elements such as arsenic, carbon, and copper?
Technical principle: "Recover early and discard early." That is, to recover coarse-grained gold as early as possible in the grinding circuit and to discard waste rock as early as possible to reduce subsequent energy consumption.
2. Three Core Separation Technologies
According to the nature of the ore, we usually adopt the following three core technologies or their combined processes:
2.1 Gravity Separation Method

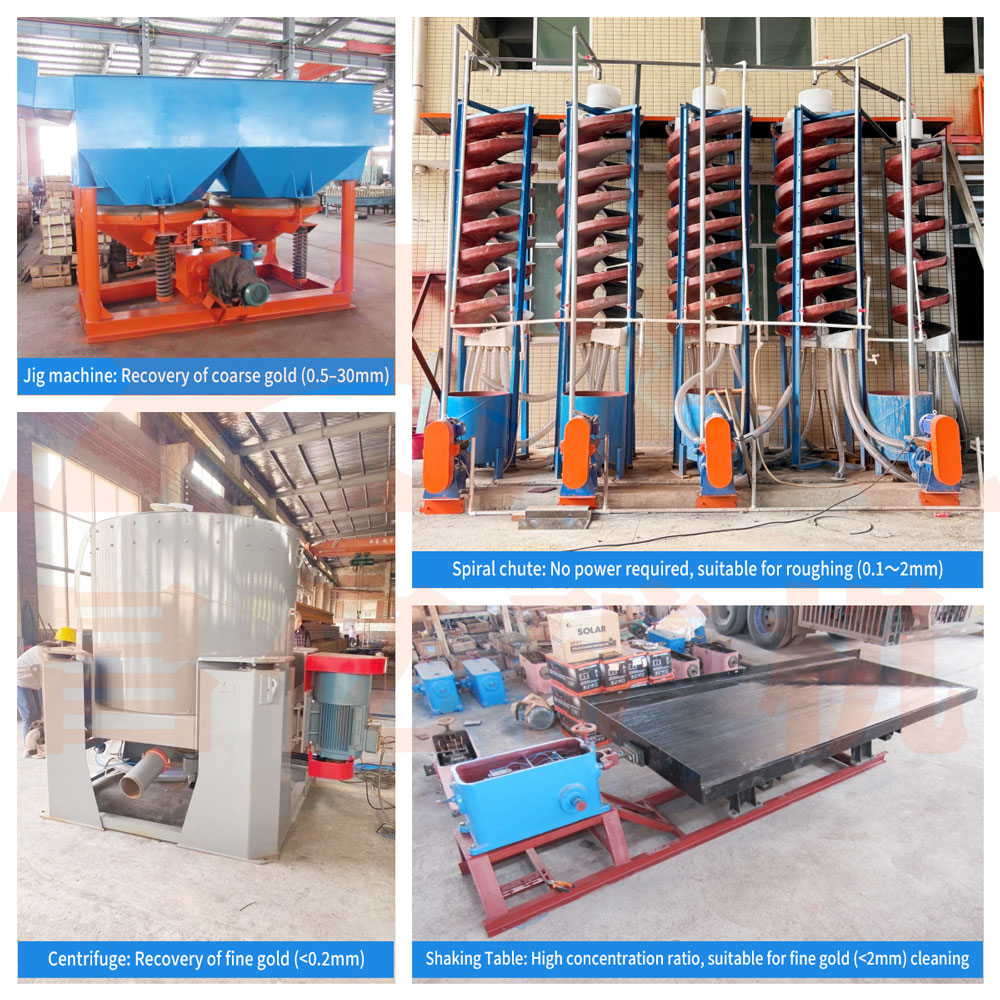

Principle: Utilizing the significant density difference between gold (~19.3 g/cm³) and gangue (~2.6 g/cm³). Applicable: Sand gold ore, gold ore with coarse-grained dissemination. Equipment: Centrifugal separator, shaking table, jig machine, spiral chute. Advantage: Environmentally friendly, low cost, capable of directly producing doré bullion.
2.2 Flotation Method

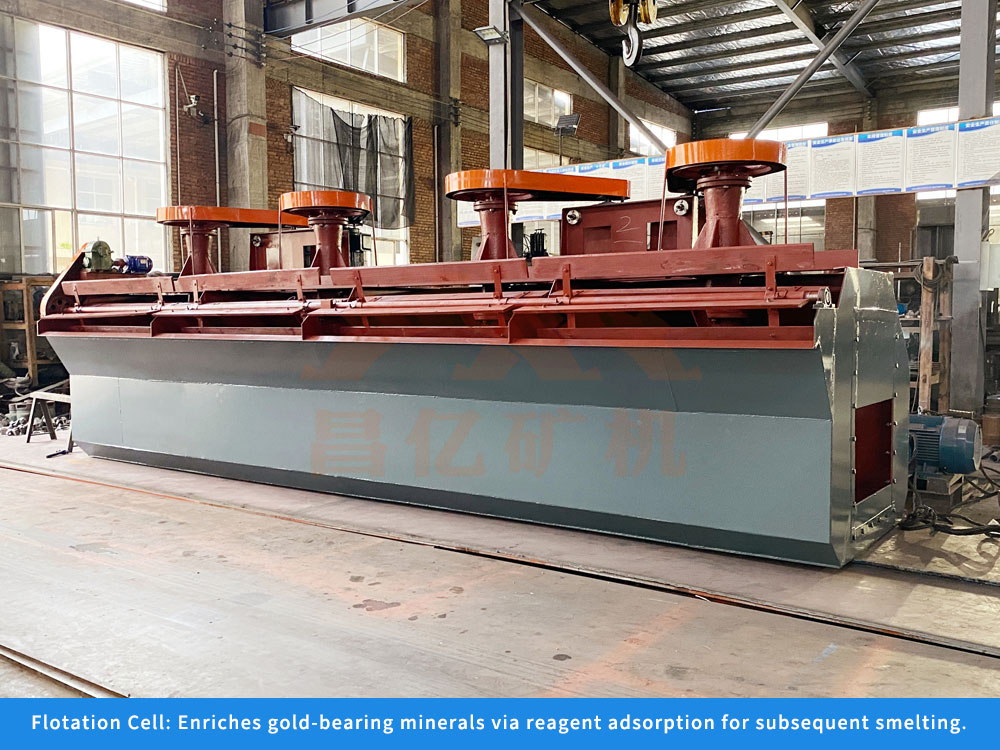

Principle: Utilizing the differences in the physical and chemical properties of mineral surfaces. By adding collectors to make the gold-containing minerals hydrophobic, they attach to bubbles and float. Application: Gold-containing sulfide ores (such as pyrite, arsenopyrite). Advantage: High enrichment ratio for fine gold, concentrating gold into sulfide concentrates.
2.3 Cyanidation Method
Principle: Under alkaline aerobic conditions, gold is dissolved by dilute cyanide solution to form gold cyanide complexes, and then adsorbed by activated carbon (CIP/CIL method). Application: Oxide ores, micro-fine disseminated gold deposits. Note: Strict environmental controls are required to prevent cyanide leakage.

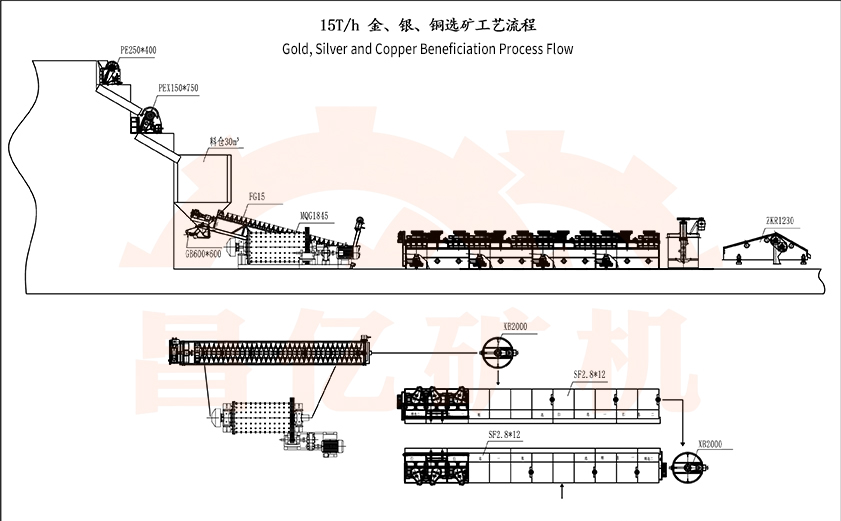

3. Typical Process Flow Diagram
For easy understanding, the following describes two mainstream gold mine processing routes in the form of process diagrams.

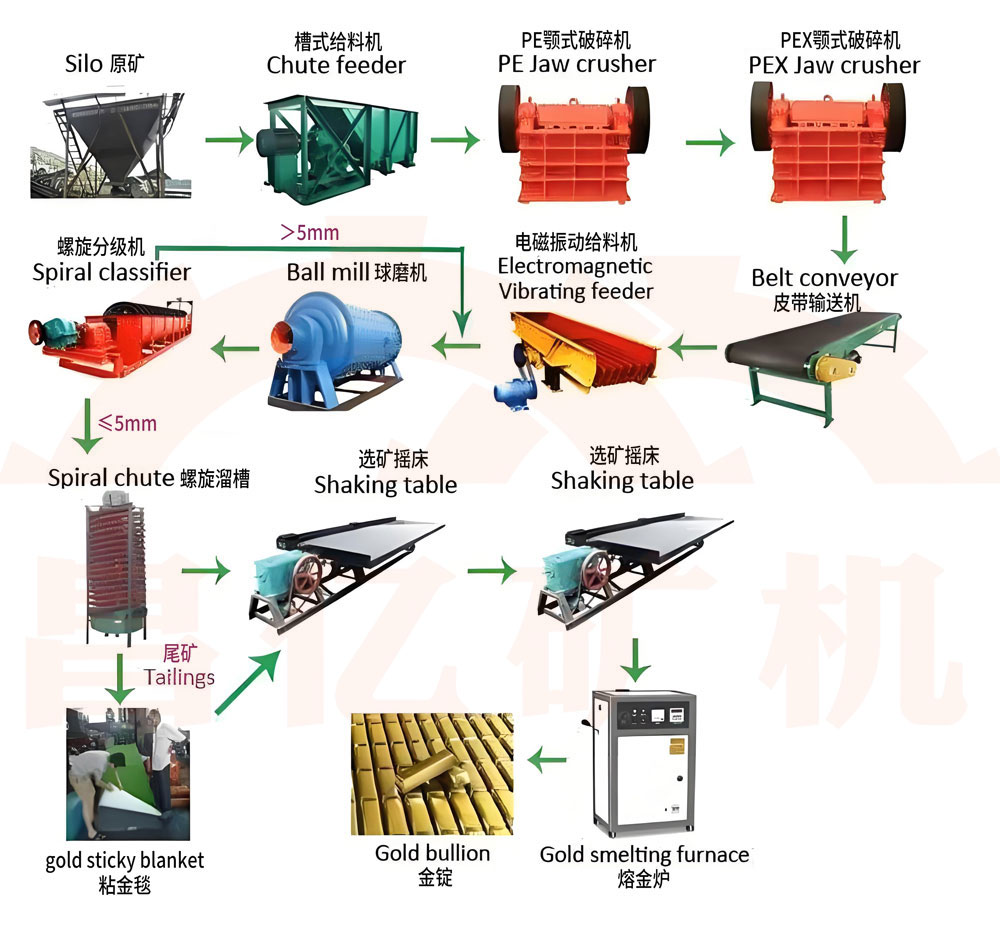

Process A: Gold Mine Gravity Separation Process
Raw Ore Crushing: PE Jaw Crusher (Coarse) → PEX Jaw Crusher (Fine).
4. Key Equipment and Operations in the Full Process
4.1 Crushing and Grinding: Disintegration is the foundation
More crushing, less grinding: Adopt multi-stage crushing to reduce ore size, lowering ball mill energy consumption by over 20%.
Fineness control: Grinding fineness directly dictates recovery rates. It is crucial to ensure monomer liberation of gold particles from gangue to avoid "middlings" reporting to tailings.
4.2 Separation and Recovery: Precision operations
Flotation control: Precise control of pH (typically 8-9) and reagent dosage is required. Modern beneficiation plants often use intelligent vision systems to monitor froth layers, automatically adjust the air supply and reagent addition.
Carbon slurry management: TActivated carbon strength, particle size, and regeneration frequency directly impact gold adsorption rates.
4.3 Environmental Protection and Tailings Management
Tailings Dry Disposal: Utilize inclined tube thickener + ceramic filter/press filter to reduce the moisture content of tailings to below 15%, achieving dry stacking and eliminating the risk of dam failure.
Waste Water Treatment: Process water must undergo cyanide destruction (e.g., sodium hypochlorite oxidation) and precipitation to achieve zero discharge or compliant reuse.
5. Industry Trends: Green and Smart
With the tightening of environmental protection regulations, gold ore beneficiation is developing in the following directions:
Cyanide-free gold extraction: Developing eco-friendly lixiviants like thiosulfate and glycine to replace toxic cyanide.
Pre-concentration technology: Utilizing intelligent sorters to reject over 30% of waste rock before grinding, significantly reducing energy consumption.
Digitalized factory: Using online grade analyzers and PLC automatic control systems to achieve real-time optimization of beneficiation indicators.
Summary
The selection of gold ore beneficiation process must follow the principle of "suiting the local conditions." From simple gravity separation to complex bio-oxidation-cyanidation combined process, technological progress is continuously improving gold recovery rates and reducing environmental pollution. Understanding the logic behind these processes is crucial for investors and practitioners to optimize benefits.
FAQs
1. Why do some gold mines require flotation while others use direct cyanidation? This depends on the form of gold. If gold is mainly enclosed in sulfides (such as pyrite), the direct cyanide reagent is difficult to penetrate, and it is necessary to first enrich the sulfides through flotation and then roast or oxidize the concentrate.
2. What is the "carbon-in-pulp" (CIP) ? CIP involves adding activated carbon directly to the cyanidation leaching tanks. While sodium cyanide dissolves the gold, the activated carbon immediately adsorbs it. This method eliminates expensive filtration and washing equipment and is currently the mainstream process for treating oxidized ores.
3. How significant is the impact of grinding fineness on recovery rates? The impact is huge. If grinding is insufficient, gold particles will not liberate from the rock and will be lost to tailings. If over-ground, it wastes electricity and may cause "sliming," which interferes with flotation or leaching.
4. What is the most common method in gold beneficiation? It depends on the nature of the ore, gravity separation, flotation, and cyanidation leaching are all commonly used methods.
5. How is gold purity tested? The purity of gold is precisely determined through means such as chemical analysis and spectral analysis.
6. What factors affect the efficiency of beneficiation? The nature of the ore, beneficiation methods, equipment performance, and operational level all affect the efficiency of beneficiation.
