Introduction — Why Rare Earth Extraction Matters

Demand for rare earth elements has surged as governments and industries accelerate electrification and digitalization. How these elements are produced — and the quality of the rare earth mining equipment used — directly affects production costs, product purity and environmental footprint. This article explains how rare earth elements are extracted, highlights the important mining equipment for rare earth projects and points procurement teams to the critical considerations for suppliers and operators.

(Tip: use the Table of Contents to jump to sections relevant to your role — engineering, procurement, or sustainability.)

What Are Rare Earth Elements?

Rare earth elements (REEs) are a group of 17 metallic elements including the 15 lanthanides plus scandium and yttrium. They are not always rare in absolute terms, but they rarely exist in concentrated deposits suitable for economical mining. Common rare earth minerals include:

• Bastnäsite (light REEs)
• Monazite (contains thorium in some deposits)
• Xenotime (yttrium-rich)
• Ion-adsorption clays (important source for heavy REEs in southern China)

Each mineral type requires specific extraction and plant equipment strategies — knowing the deposit type helps you choose the right mining equipment.

Overview: From Ore to Refined Rare Earths

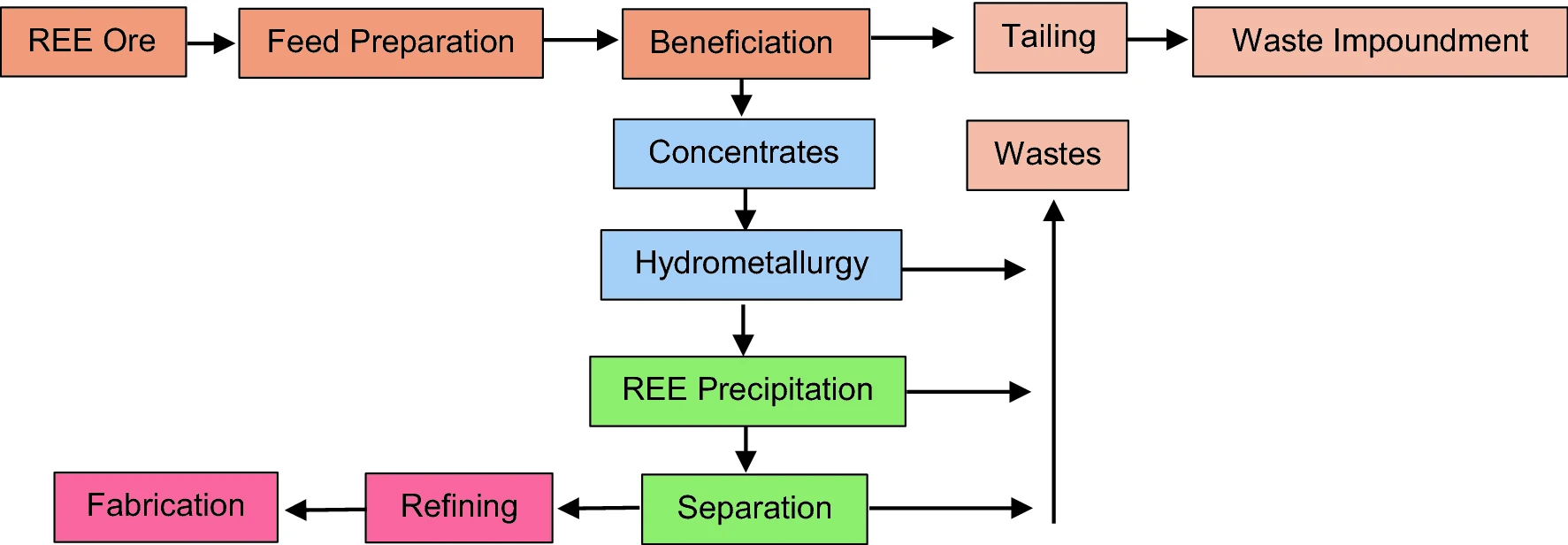

The full value chain for REE production typically follows: open pit / underground mining → comminution (crushing & grinding) → beneficiation / pre-concentration → leaching or dissolution → solvent extraction or ion exchange → precipitation & calcination → final refining. Mining equipment is crucial in the early stages: drilling rigs, excavators, haulage, crushers, mills, magnetic separators and flotation cells all determine throughput and the cost per tonne of feed to the chemical plant.

Key Mining Equipment Used in Rare Earth Extraction

1. Drilling and Blasting Equipment

Accurate drilling rigs and precise blasting shape the fragmentation profile — which affects energy use in downstream mills. Top considerations: hole spacing, bench design and blast control to minimize oversized rock and reduce primary crusher wear.

2. Excavators, Front-End Loaders & Shovels

After fragmentation, excavators and loaders transfer ore to haul trucks. For high-throughput open pits, hydraulic excavators and electric rope shovels paired with 100–400 tonne haul trucks are common. For smaller or remote projects, wheel loaders and articulated trucks are used.

3. Haulage: Trucks vs Conveyors

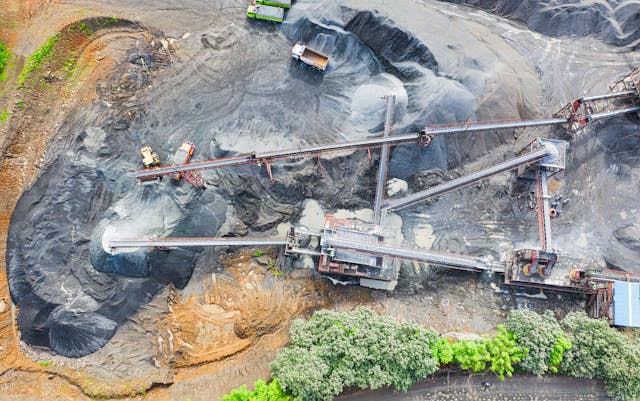

Large open pits often rely on rigid trucks; however, overland conveyors reduce emissions and operating costs for continuous movement to the crusher. Conveyors also reduce diesel dependency — a key benefit for sustainable rare earth mining equipment strategies.

4. Primary & Secondary Crushers

Jaw crushers, cone crushers and impact crushers reduce ore to sizes suitable for grinding. Crusher selection depends on rock competency, abrasive index and desired product size. Proper crusher configuration directly affects grinding energy consumption — a major cost driver.

5. Grinding Mills (SAG, Ball, Vertical Mills)

Grinding liberates rare earth minerals. Options include SAG mills, ball mills and vertical roller mills. Energy-efficient mill circuits and correct liner/material selection are paramount because grinding is typically the largest single energy consumer in a hard-rock REE plant.

6. Beneficiation Equipment (Magnetic, Gravity, Flotation)

Beneficiation uses magnetic separators, gravity concentrators, spirals and flotation cells to upgrade ore prior to leaching. For magnetic REE minerals, high-intensity magnetic separators can produce a strong pre-concentrate, reducing downstream chemical costs.

7. Slurry Pumps, Pipelines & Solid-Liquid Separation

Corrosion-resistant slurry pumps, filters and thickeners manage the transfer and dewatering of tailings and concentrates. Material selection must address acidic leach solutions and abrasive solids — stainless steels, lined pumps and ceramic wear parts are common.

8. Plant Support: Power, Dust Control & Water Treatment

Auxiliary systems such as dust collectors, wastewater treatment plants, power substations and instrumentation are essential to meet environmental regulations in Europe, North America and Latin America.

Step-by-Step Extraction Process (Practical Guide)

Comminution: Crushing and Grinding

Correct comminution is the foundation of high recovery. The goal is to achieve liberation while minimizing energy use. Typical targets range from 70–90 µm depending on mineralogy. Mill circuit optimization, cyclone cut sizes and screen efficiency all matter.

Beneficiation / Pre-concentration

Removing as much gangue as possible cuts reagent consumption. Where magnetic or gravity contrasts exist, pre-concentration may remove 30–70% of mass while retaining a large fraction of contained rare earths.

Leaching & Dissolution

Two common approaches: chemical leaching (acid or alkaline) for hard rock ores and in-situ or heap leaching for certain clays and low-grade ores. Choice of reagent (sulfuric acid, ammonium sulfate, etc.), temperature and residence time determine extraction kinetics and equipment sizing.

Solvent Extraction & Ion Exchange

After leaching, solvent extraction (SX) or ion exchange separates REEs from impurities. Mixer-settler banks, pulsed columns or continuous extraction towers are used. SX infrastructure is chemical-intensive and needs corrosion-resistant vessels and reliable mixers.

Precipitation & Calcination

REEs are precipitated as carbonates/oxalates, filtered, dried and calcined to produce rare earth oxides (REOs). Mechanical filters, filter presses, dryers and rotary kilns are typical equipment in this stage.

Environmental & Operational Challenges

While rare earth extraction supports clean technologies, the extraction process itself can pose environmental risks:

• Radioactive elements: Monazite may contain thorium/uranium — strict handling and disposal are required.
• Acid and chemical management: Leaching uses aggressive reagents that demand robust containment and treatment.
• Water & tailings: High water usage and tailings management require engineered storage facilities and water recycling.
• Equipment wear: Abrasion and corrosion increase maintenance costs — choose wear-resistant materials and spare part strategies.

For buyers in Europe and North America, strict permitting and community expectations mean equipment that reduces emissions and footprint is prioritized. In Latin America, water management and social license to operate are often decisive for project success.

Case Studies: Mountain Pass, Lynas & Clay Deposits

Mountain Pass (United States)

Mountain Pass is an example of a hard-rock REE operation focusing on robust open-pit equipment, efficient comminution and integrated concentrator circuits. Reliability of grinding mills and conveyors directly impacts throughput. (See internal resource: Mountain Pass equipment profile.)

Lynas — Mount Weld (Australia)

Mount Weld demonstrates hard-rock beneficiation followed by complex downstream chemical processing. Crushers, dry classifiers and fine grinding systems are critical to achieve the desired feed for solvent extraction. (See internal resource: Lynas processing overview.)

Ion-adsorption Clay Deposits (Southern China / Latin America potential)

Ion-adsorption clays allow for lower-intensity mechanical processing and often rely on in-situ or heap leaching. These deposits highlight opportunities for lower capital mining equipment but raise questions about reagent management and landscape restoration. (See internal resource: ion-adsorption leaching methods.)

Sustainable Options & Innovations

New approaches to reduce environmental impact include:

• Dry or semi-dry comminution: lowers water use.
• Ion exchange & greener reagents: reduce acid consumption.
• Automation & predictive maintenance: increase equipment uptime and reduce fuel consumption.
• Modular/mobile plants: suitable for remote Latin American projects to reduce infrastructure footprint.
• Recycling & urban mining: recovering REEs from end-of-life magnets and electronics.

How to Choose Mining Equipment for Rare Earth Projects

When specifying mining equipment for rare earth, consider:

1. Deposit type: hard rock vs clay determines crusher & leach requirements.
2. Throughput & recovery targets: size equipment to match desired annual REO output.
3. Material compatibility: choose corrosion-resistant pumps and liners for acidic slurries.
4. Energy efficiency: prioritize energy-efficient grinding mills and variable speed drives.
5. Local service & spare parts: minimize downtime with supplier local presence in Europe/North America/Latin America.
6. Environmental controls: dust collection, tailings filtration and wastewater treatment must be included in the scope.

Example procurement checklist (short): equipment specs, MRO plan, warranty terms, performance guarantees, local spares stock, emissions and effluent limits compliance.

Sample spec highlights:
- Jaw crusher: capacity X tph, feed size Y mm, wear liner material: Mn-steel
- Ball mill: 3.5m x 6m, installed power Z kW, liners: rubber/steel composite
- Slurry pump: 200 m³/h, ceramic-lined impeller, acid-resistant casing
- Magnetic separator: 2-stage, NdFeB recovery target

Conclusion & How We Can Help

In summary, how rare earth elements are extracted depends as much on mineralogy as it does on choosing the right rare earth mining equipment. From drills and excavators to grinding mills and solvent extraction plants, every equipment decision affects recovery, cost and sustainability.

If your team is evaluating equipment suppliers for projects in Europe, North America, or Latin America, focus on:

• Proven equipment performance on similar REE deposits
• Material compatibility (acid/abrasion resistance)
• Energy and water efficiency
• Local service network and spare parts availability
• Environmental compliance and tailings management design
