In modern crushing and screening plants, the linear vibrating screen has become an essential piece of equipment for precise material separation, capacity control, and process stabilization. Unlike circular vibrating screens designed primarily for heavy-duty scalping, linear vibrating screens are widely applied in fine screening, dewatering, sand washing, and tailings treatment systems.
This engineering-level guide provides a systematic explanation of linear vibrating screen technology, from mechanical structure and motion principles to application scenarios, selection methodology, and long-term performance optimization. The content is written for mining engineers, EPC contractors, and B2B buyers seeking reliable screening solutions for industrial-scale operations.
A linear vibrating screen operates based on the excitation force generated by two synchronized vibrating motors or a dual-shaft exciter. These exciters rotate in opposite directions, producing a resultant linear motion that drives the screen deck to vibrate in a straight-line trajectory.
This linear motion causes material on the screen surface to move forward in a parabolic path, while smaller particles pass through the screen apertures and oversized material is discharged at the end. Compared with circular motion, linear vibration offers:
Because of these characteristics, linear vibrating screens are widely used in sand washing plants, tailings dewatering systems, and fine classification stages in mineral processing lines.
From an engineering standpoint, the performance of a linear vibrating screen depends heavily on its structural configuration. A typical industrial linear vibrating screen consists of the following components:
The screen frame is fabricated from high-strength structural steel to withstand continuous vibration loads. Side plates are usually reinforced with ribs to prevent deformation and fatigue cracking during long-term operation.
Most linear vibrating screens adopt dual vibration motors mounted symmetrically on the screen body. The motor parameters—speed, excitation force, and installation angle—directly influence vibration amplitude and conveying speed.
Screen decks can be configured with single or multiple layers depending on separation requirements. Common screen media include:
The selection of screen media affects screening efficiency, wear life, and maintenance cost.
Rubber springs or steel coil springs isolate vibration from the foundation, reducing dynamic loads transferred to surrounding structures.

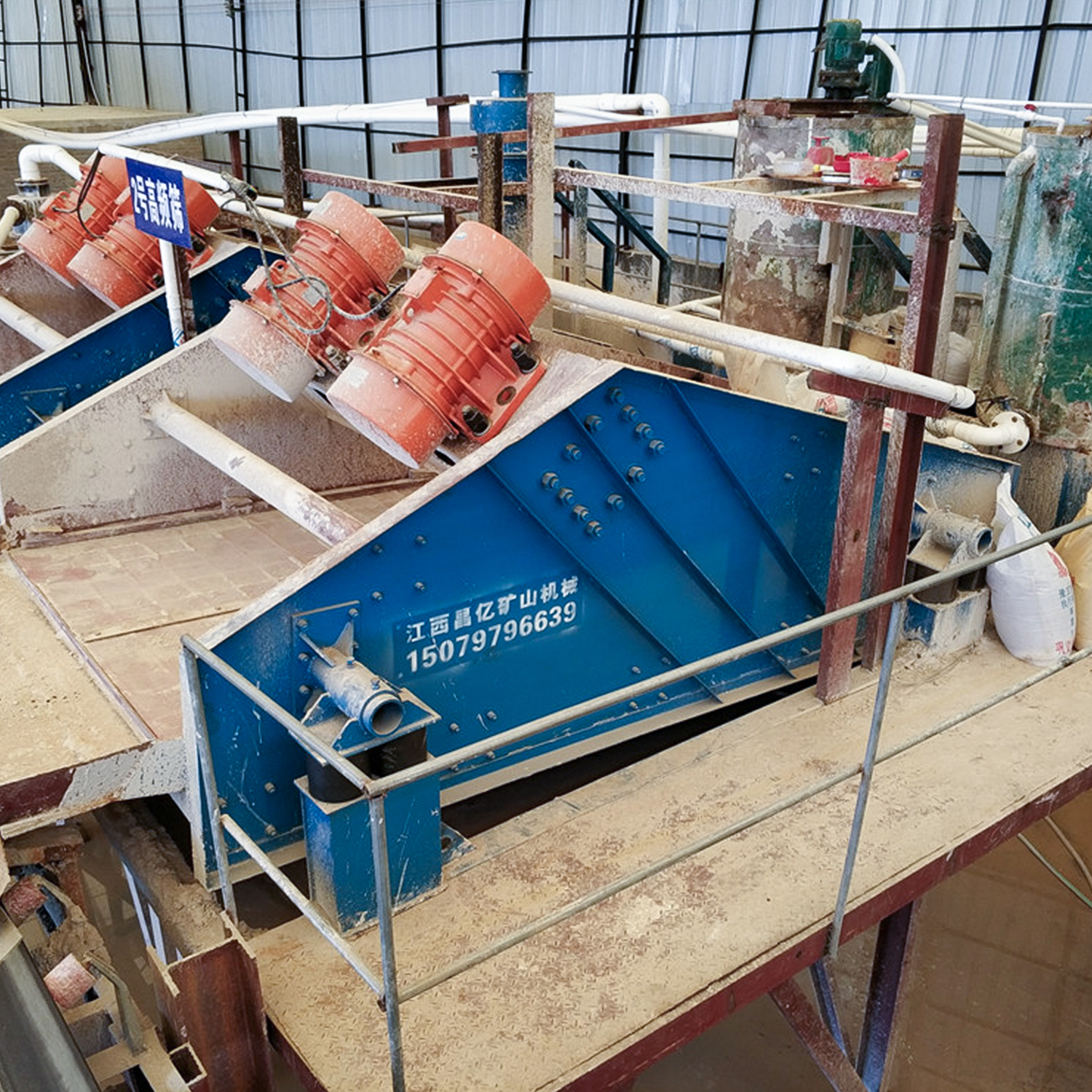

In sand washing systems, linear vibrating screens are commonly used for dewatering and fine classification after washing. They effectively remove excess moisture and fine particles, producing clean, market-ready sand.
In mineral processing plants, linear vibrating screens are applied for fine screening before grinding or as control screens in closed-circuit systems. Their precise separation capability helps stabilize downstream processes such as flotation and thickening.
Linear vibrating screens are often installed upstream of mining thickeners to remove coarse solids from tailings slurry, reducing thickener load and improving sedimentation efficiency.
Selecting the right linear vibrating screen requires a systematic evaluation of operating parameters:
Larger screen areas provide higher capacity and better separation efficiency, but require stronger structural support and higher power input.
Amplitude and frequency must be optimized based on material properties. Fine, wet materials typically require higher frequency and moderate amplitude.
When installed in crusher and screening systems, linear vibrating screens must match the discharge characteristics of upstream crushers to avoid bottlenecks or material accumulation.
Screening efficiency is influenced by multiple interacting factors, including feed rate, particle shape, screen inclination, and vibration intensity.
Uniform feed distribution across the screen width improves separation accuracy and prevents localized overloading.
Polyurethane panels offer longer wear life in abrasive environments, while wire mesh provides higher open area for fine screening.
Modern screening plants increasingly adopt condition monitoring systems to track vibration parameters and detect abnormal conditions early.
Linear vibrating screens are rarely used as standalone equipment. They are typically integrated with:
Proper system integration ensures smooth material flow, reduced energy consumption, and optimized plant productivity.
Although linear vibrating screens feature relatively simple structures, regular maintenance is essential to ensure long-term reliability.
A preventive maintenance approach significantly reduces unplanned downtime and extends equipment service life.
From an engineering viewpoint, the choice between linear and circular vibrating screens depends on application requirements:
| Aspect | Linear Vibrating Screen | Circular Vibrating Screen |
|---|---|---|
| Motion | Linear | Circular |
| Screening Accuracy | High | Medium |
| Capacity | Moderate | High |
| Typical Use | Fine screening, dewatering | Scalping, coarse screening |
The linear vibrating screen plays a critical role in modern mining, sand washing, and tailings treatment systems. Its precise screening capability, flexible configuration, and reliable operation make it an indispensable component in fine separation processes.
For EPC contractors and mining operators, understanding the engineering principles, selection logic, and optimization strategies of linear vibrating screens is essential for building efficient and sustainable crushing and screening plants.
