In bulk material handling and conveyor system design, **screw conveyors vs belt conveyors** is a key comparison. The proper choice between them affects efficiency, reliability, and cost. This article aims to fully compare screw conveyors and belt conveyors in terms of structure, performance, pros & cons, application, cost, and maintenance, helping engineers or procurement professionals make an informed decision.
A screw conveyor (also called auger conveyor) consists of a helical blade (flight), a shaft (or shaftless design), a trough or tube, and a drive unit. Material is pushed along by rotation of the screw, achieving horizontal or inclined conveyance. Screw conveyors are commonly used for powders, granules, semi-solid or slurry materials. Their layout is compact and suitable for enclosed transport with minimal footprint.
Many design discussions on **screw conveyor advantages** focus on their dust containment, compactness, and ease of maintenance.

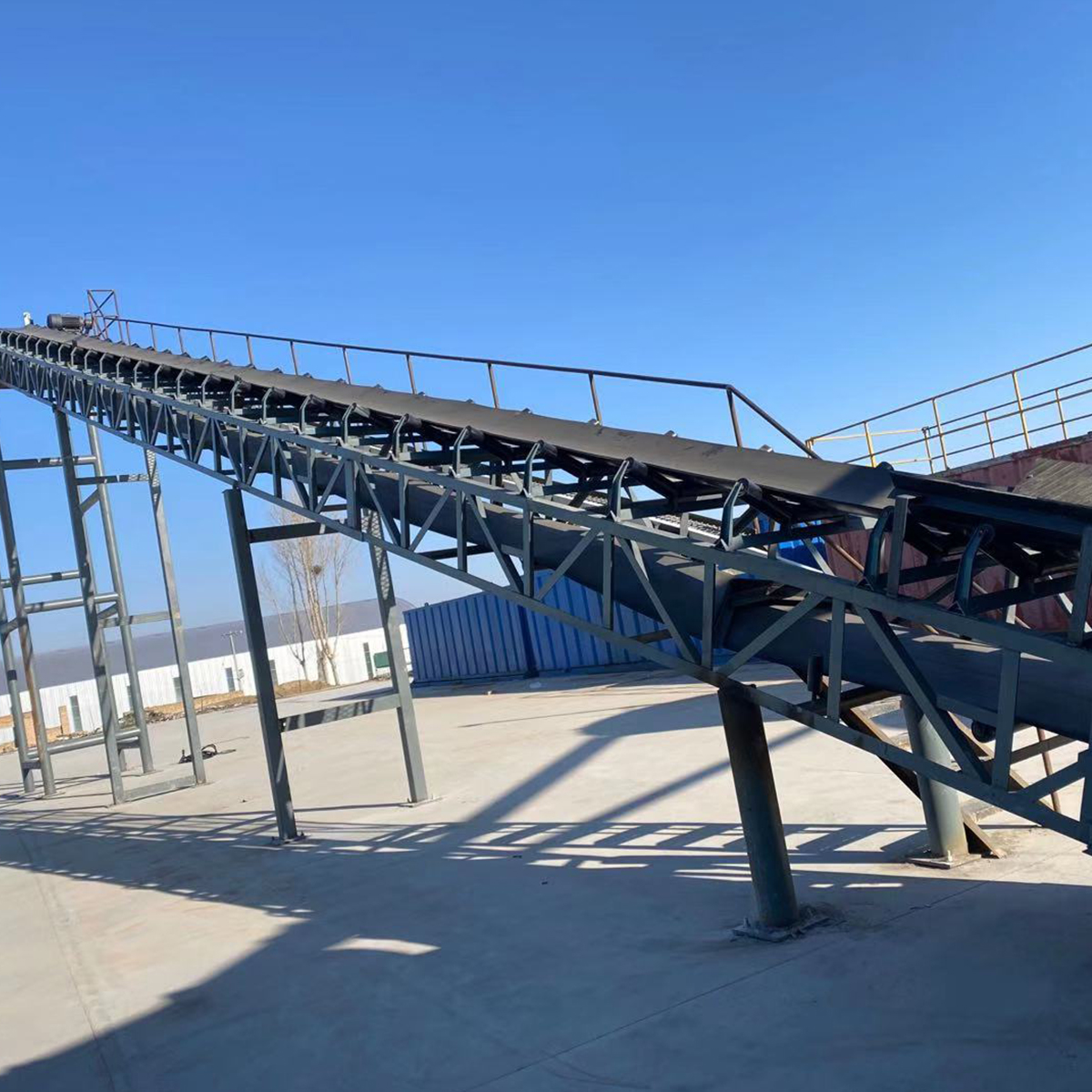

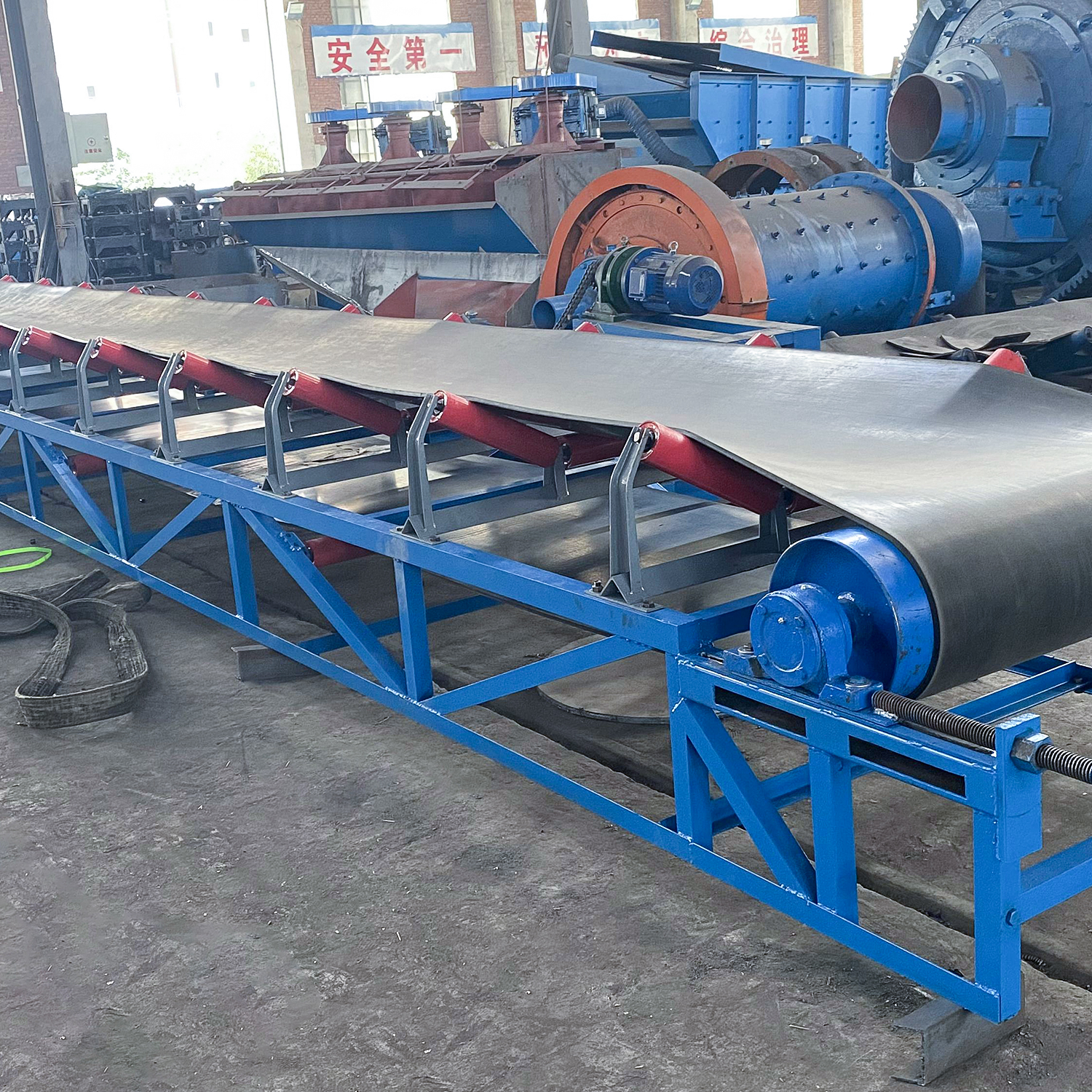

A belt conveyor consists of a continuous belt supported by rollers, driven by drive rollers, with tensioning and frame support. Material sits directly on the belt, which moves to transport items horizontally or with slight inclination. Belt conveyors are among the most common long-distance continuous conveyors, especially suitable for high throughput and continuous operation.
When comparing **screw conveyors vs belt conveyors**, the versatility and wide adoption of belt conveyors often make them a default benchmark.
These benefits often make screw conveyors the favored option for designers weighing **screw conveyor advantages vs belt conveyor disadvantages**.
4.1 Throughput Capacity
Belt conveyors typically outperform screw conveyors on a per-unit length basis due to lower friction and ability to run at higher speeds. However, for short to moderate distances with moderate throughput, a screw conveyor may suffice.
4.2 Inclination Capability
Screw conveyors can operate effectively at modest inclinations (~20°–30°), but steeper angles lead to backflow risk. Belt conveyors require careful friction or cleat design for inclines beyond a certain slope.
4.3 Energy Efficiency
Under similar load conditions, belt conveyors generally consume less energy per tonne transported. But for enclosed, short-distance, low head applications, screw conveyors may still be cost-effective.
4.4 Maintenance & Lifetime
Belt systems demand regular checks of belt tension, roller wear, alignment, and occasional belt replacement. Screw conveyors require inspection of flights, shafts, bearings, and casing wear. Many design guides (e.g. “belt conveyor maintenance best practices”) offer internal reference links as in-site resources (internal link A).
In real industrial scenarios, selection depends on material properties (size, moisture, abrasiveness, flow characteristics), distance, elevation, environmental constraints, dust control, and system integration.
During system design, give careful weight to “screw conveyors vs belt conveyors” as part of the entire line’s flexibility and modularity.
In cost analysis, consider these components:
For belt conveyors, frequent belt or roller replacements may add substantial lifetime cost. For screw conveyors, consider wear on flights, bearings, and casing, and optimize material choices and spare logistics (see “wear-resistant screw flights” internal link C).
Here are two illustrative case comparisons:
A cement plant with a long belt conveyor segment for powdered cement faced dust leakage and maintenance issues. The plant retrofitted a section with a screw conveyor to enclose the critical zone. The hybrid system reduced dust emissions dramatically, though energy usage moderately increased. In its design documents, the team compared **screw conveyor advantages vs belt conveyor disadvantages** and used simulation models.
In a grain processing plant, intact kernels must be preserved and long transfer distances exist. The design chose belt conveyor for the main trunk, and screw conveyor for branch feeding. The design report cites “belt conveyor disadvantages in dusty or steep sectors” and “screw conveyor advantages in enclosed feeding” internal link D and internal link E.
Ultimately, there is no one-size-fits-all answer in the **screw conveyors vs belt conveyors** debate. The correct selection depends on specific operating conditions, material behavior, and system layout.
If your priorities include dust control, compactness, and short-to-medium runs, screw conveyors may offer distinct advantages. If throughput, distance, and energy efficiency dominate, belt conveyors are often the better choice.
In practice, hybrid solutions, modular integration, or staging multiple conveyor types often yield the most adaptable and cost-effective system. With rigorous modeling, pilot testing, and lifecycle cost analysis, you can strike the optimal balance between “advantages of screw conveyors & disadvantages of belt conveyors.”
