Crushing and screening systems form the backbone of modern mining, quarrying, and aggregate production operations. From primary size reduction to final product classification, a well-designed crushing and screening plant directly determines production capacity, product quality, operating cost, and long-term equipment reliability.
This engineering-level guide is developed for mine owners, EPC contractors, and technical managers seeking a systematic understanding of crushing and screening systems. Drawing on principles commonly found in professional mineral processing handbooks and large-scale project practices, this article focuses on practical engineering logic rather than generic equipment descriptions.
In mineral processing plants, crushing and screening systems serve as the first and most critical stage of material preparation. Their primary function is to reduce raw ore or stone to a suitable size range for downstream processing such as grinding, washing, or beneficiation.
Unlike standalone machines, a crushing and screening system is an integrated engineering solution. Its performance impacts:
In large-scale mining and aggregate projects, poor system design often leads to bottlenecks, frequent shutdowns, and excessive operating costs. Therefore, engineering-level planning of crushing and screening systems is essential from the early feasibility stage.
A standard crushing and screening process flow consists of multiple interconnected stages designed to progressively reduce material size while maintaining production efficiency.
Typical process flow includes:
In engineering practice, closed-circuit configurations are widely adopted to ensure consistent product size. Oversized material from vibrating screens is returned to crushers for further reduction, while qualified material proceeds to the next stage.
For detailed equipment options, refer to our Crusher & Screening Equipment Collection.
Primary crushing is responsible for reducing run-of-mine (ROM) material to a manageable size. Jaw crushers are most commonly used at this stage due to their high reduction ratio and robust structure.
Engineering considerations include:
Primary crushing equipment must operate reliably under continuous heavy load, making structural strength and wear resistance critical factors.

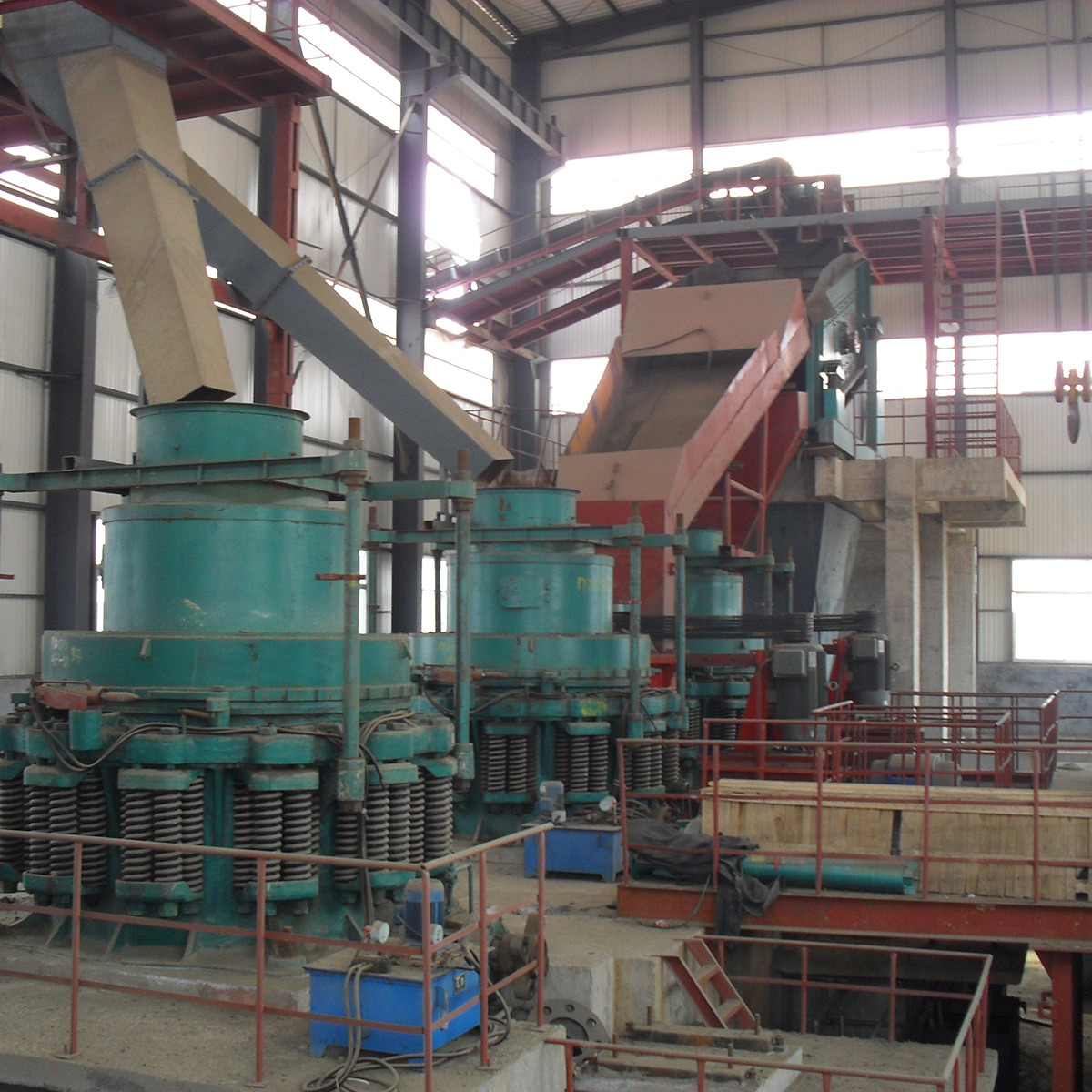

Secondary crushing further reduces material size and begins shaping the final product. Cone crushers and impact crushers are typically used depending on material characteristics.
Cone crushers are preferred for hard and abrasive ores, while impact crushers are suitable for softer rock and applications requiring better particle shape.
Tertiary crushing is applied when fine aggregate or specific particle size distribution is required. This stage demands precise control and stable feeding conditions to avoid excessive wear or inefficiency.
Screening is not merely a separation process; it is a control mechanism that determines system efficiency.

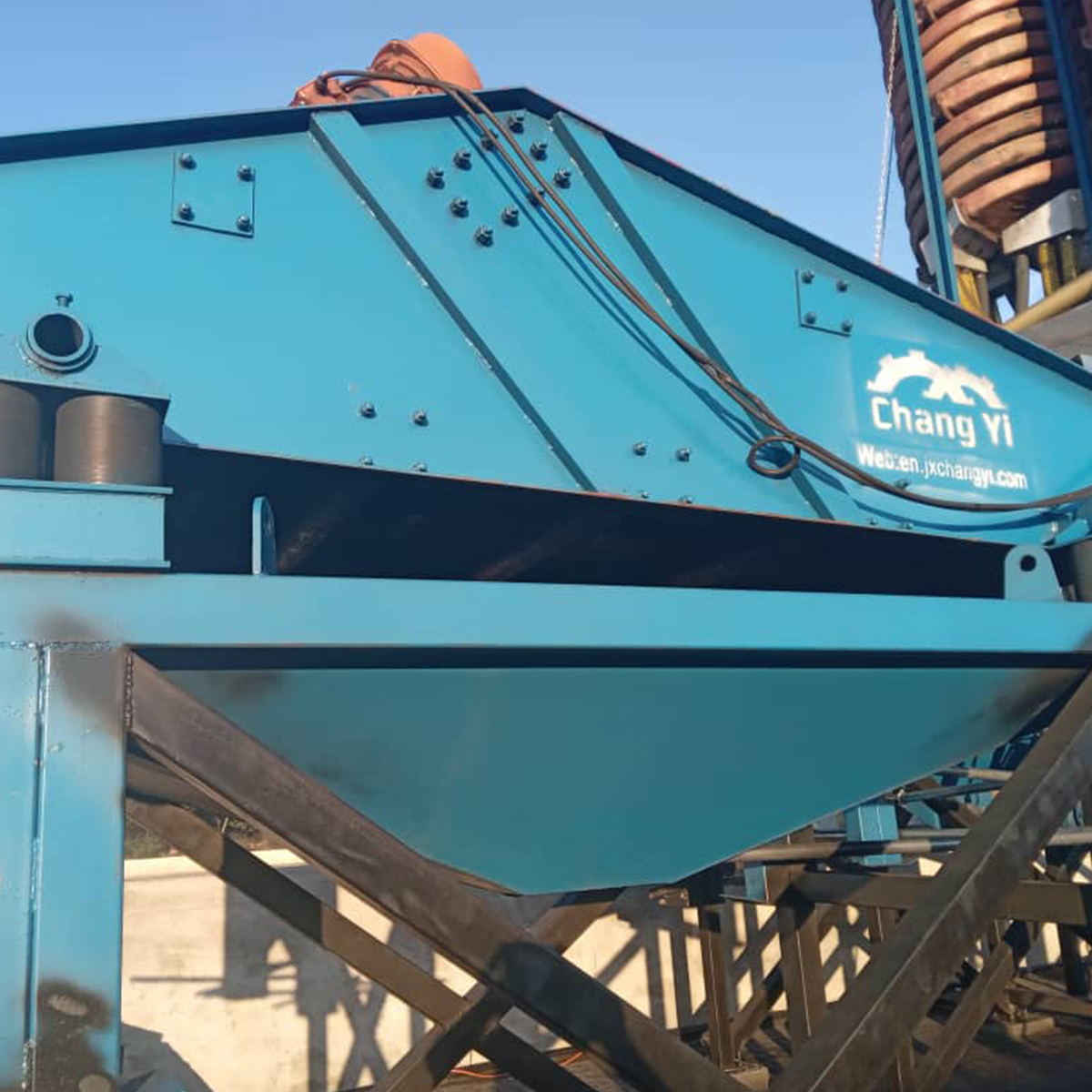

Key functions of vibrating screens include:
Performance indicators for screening equipment include screening efficiency, throughput, and vibration stability. Improper screen selection often leads to recirculation overload and reduced plant performance.
Explore dedicated screening solutions here: Vibrating Screen for Mining Applications.
Equipment selection should never be based solely on nominal capacity. Engineering-level selection considers the interaction between machines within the system.
Key selection principles include:
Failure to follow these principles often results in chronic bottlenecks and excessive maintenance costs.
Fixed plants are suitable for long-term mining projects with stable production requirements. They offer high capacity and low operating cost per ton but require significant civil works.
Semi-mobile crushing systems balance flexibility and capacity, making them popular in medium-term projects.
Mobile crushing and screening plants are widely used in remote mining sites and short-term projects. They reduce installation time and allow rapid relocation.
Learn more about mobile solutions: Mobile Crushing Plant.
Successful crushing and screening system design depends on accurate engineering data.
Ignoring these parameters during early design stages often leads to costly modifications during commissioning.
Operational stability is a key performance indicator for crushing and screening plants. Preventive maintenance programs significantly extend equipment service life.
Common optimization strategies include:
Based on project experience, common mistakes include undersized screens, mismatched crusher capacity, and inadequate dust control systems.
Engineering optimization should focus on system balance rather than individual machine performance.
From an EPC standpoint, crushing and screening systems must be designed with construction feasibility, transport logistics, and commissioning efficiency in mind.
Early collaboration between equipment suppliers and engineering teams significantly reduces project risk and improves overall performance.
For complete system solutions, visit: Changyi Mining Crushing & Screening Solutions.
Conclusion
Crushing and screening systems are not isolated machines but integrated engineering systems that require professional design, precise equipment selection, and long-term operational planning. A well-optimized system delivers sustainable productivity, lower operating costs, and improved project returns.
