Jaw crushers are the most widely used primary crushing equipment in mining, quarrying, and aggregate processing plants. As the first stage of material size reduction, jaw crushers directly influence downstream crushing efficiency, system stability, and overall operating cost.
This engineering-level guide is written for mine owners, EPC contractors, and technical decision-makers who require a practical, system-oriented understanding of jaw crusher selection, operation, and optimization. The content structure follows professional mineral processing handbooks and real-world project practices rather than generic descriptions.

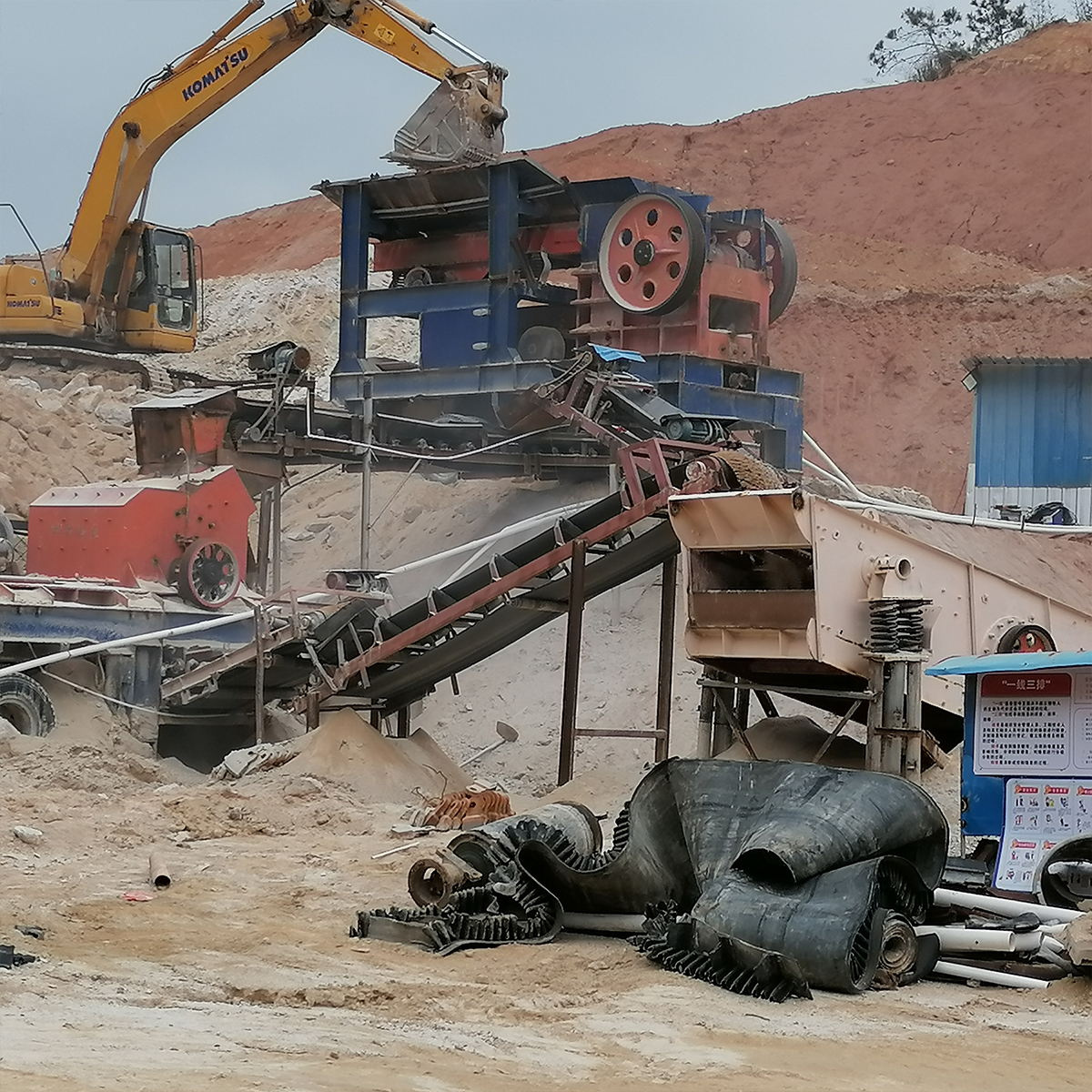

In a typical crushing and screening system, the jaw crusher serves as the primary crusher responsible for reducing run-of-mine (ROM) material into a manageable size range for secondary crushing.
From an engineering perspective, the jaw crusher determines:
Because it operates under continuous high-load conditions, the jaw crusher must prioritize structural strength, mechanical reliability, and ease of maintenance.
Jaw crushers operate based on a simple compression crushing mechanism. Material is fed into the crushing chamber formed by a fixed jaw plate and a movable jaw plate.
As the movable jaw oscillates, material is compressed, fractured, and discharged through the bottom opening once it reaches the required size.
Key characteristics of the jaw crusher working principle:
Unlike impact-based crushing equipment, jaw crushers rely on compressive stress, making them particularly suitable for hard and abrasive materials.
The structural design of a jaw crusher directly affects its service life and performance.
The main frame is typically constructed from high-quality cast steel or welded steel plates. It must withstand repeated dynamic loads without deformation or fatigue failure.
Jaw plates are the primary wear parts. Their profile, material composition, and installation accuracy significantly influence crushing efficiency and wear rate.
The eccentric shaft drives the movable jaw and is subject to high bending and torsional stresses. Heavy-duty bearings are essential for long-term reliability.
The toggle plate serves both as a force transmission component and a safety mechanism, protecting the crusher from overload damage.
Single toggle jaw crushers are widely used due to their simple structure and lower operating cost. They are suitable for most mining and aggregate applications.
Double toggle designs provide higher crushing force and are typically applied in extremely hard rock conditions where durability is critical.
Selection between single and double toggle designs should be based on material hardness, production capacity, and maintenance considerations.
Engineering-level jaw crusher selection requires comprehensive analysis rather than reliance on catalog data.
Key parameters include:
Ignoring any of these parameters often results in undersized equipment or excessive wear.
Nominal crusher capacity is often misunderstood. Actual throughput depends on multiple site-specific factors.
Engineering design should apply correction factors for:
Proper feeder selection is essential to ensure consistent material flow into the jaw crusher.
Related feeding equipment: Vibrating Feeder
Wear management is a critical aspect of jaw crusher operation, particularly in abrasive mining environments.
Common jaw plate materials include:
Engineering optimization focuses on balancing wear life with crushing performance rather than simply maximizing hardness.
Jaw crushers rarely operate in isolation. Their performance must align with downstream cone crushers, impact crushers, and vibrating screens.
Improper integration often leads to:
Complete system solutions are available at: Crusher & Screening Systems
Reliable jaw crusher operation depends on disciplined maintenance practices.
Key maintenance activities include:
Preventive maintenance significantly reduces unplanned downtime and extends equipment service life.
Common jaw crusher issues observed in mining projects include uneven wear, excessive vibration, and reduced capacity.
Engineering optimization measures include improved feed control, optimized jaw plate profiles, and regular performance monitoring.
Conclusion
Jaw crushers remain the most reliable primary crushing equipment for mining and aggregate plants. When selected and integrated based on sound engineering principles, they provide stable performance, long service life, and strong system-level value.
