From Rock to Resource: A Deep Dive into a 300 TPH Quartz Stone Crushing Production Line
Discover how a 300 TPH quartz stone crushing production line efficiently transforms hard rock into high-quality sand. Explore the core equipment workflow, including Jaw Crushers, Cone Crushers, and Rotary Scrubbers.
May 20th,202624 Views
With the increasing demand for high-quality quartz sand from infrastructure and high-end manufacturing industries, how to efficiently and stably process hard, large quartz stones into uniformly sized high-quality sand and gravel has become the focus of many sand and gravel enterprises.
A quartz stone crushing production line with a capacity of 300 tons per hour is not just a simple assembly of equipment, but a "symphony" led by precision machinery. Today, we will take a hard-core dissection of this production line to see how the core quartz stone crushing equipment "carries out its duties" and collaborates to complete this magnificent transformation from rock to sand and gravel.

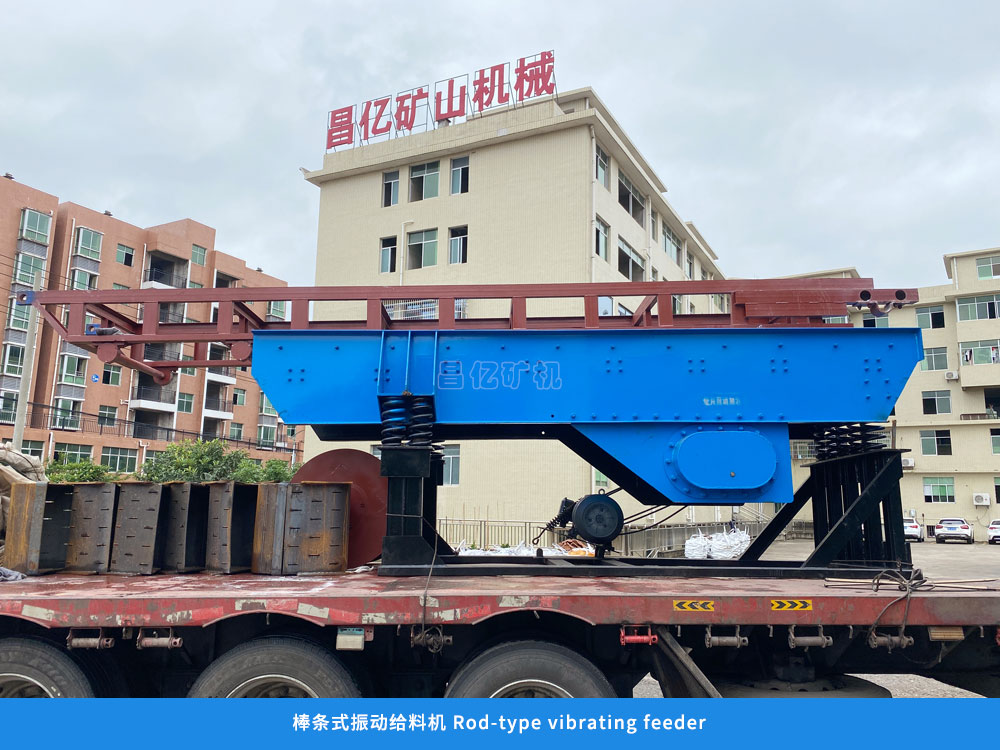

1. Raw Material Pretreatment: The Vibrating Feeder
The first roar of the production line comes from the vibrating feeder. It is the first checkpoint for raw materials entering the crushing chamber.
Core responsibility: It uniformly and continuously feeds the quartz stones brought from the mine, which vary in size (even up to 1000mm), into the next stage of the crusher. It avoids the "clogging" phenomenon caused by excessive instantaneous feeding, which is a prerequisite for ensuring a stable production capacity of 300 tons per hour.
Technical highlight: In view of the high silt content in quartz stones in some mining areas, the vibrating feeder is usually equipped with a bar screen. During the conveying process, it can pre-screen out the soil and fine particles, achieving "pre-screening". This not only improves the purity of the raw materials but also effectively reduces the load on the subsequent crushers, lowering energy consumption.

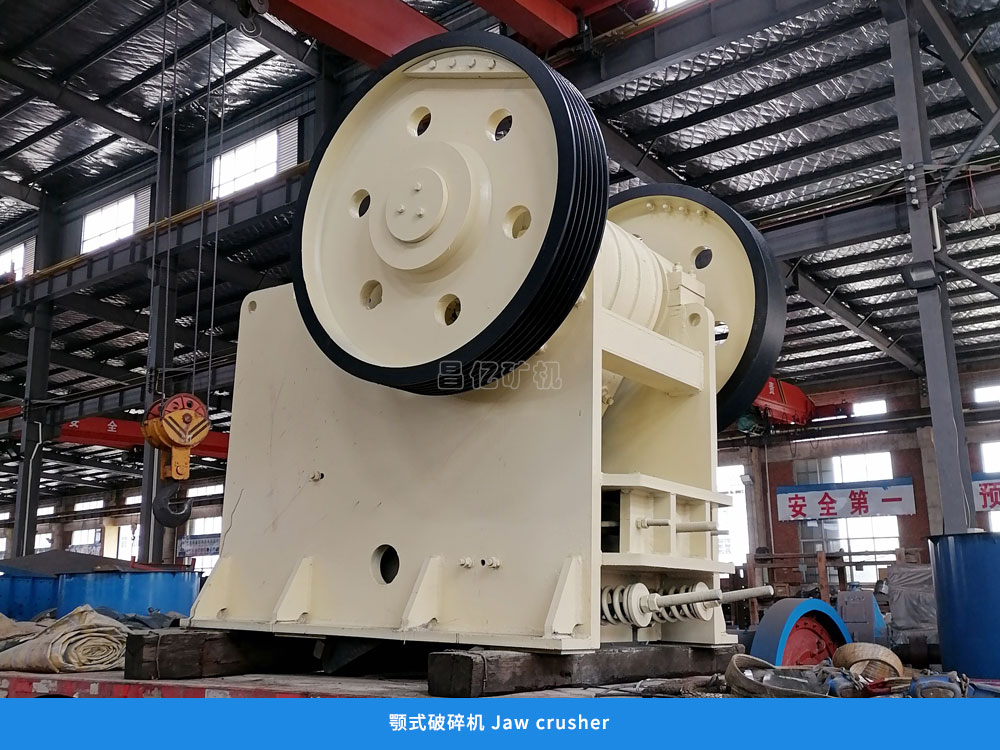

2. The Coarse Crushing Pioneer: Jaw Crusher
The jaw crusher undertakes the heavy-duty coarse crushing task, serving as the "power source" of the entire line.
Core responsibility: It crushes large pieces of quartz stone delivered by the vibrating feeder through the compression of two massive jaw plates (the moving jaw and the stationary jaw) to less than 250mm. Its deep V-shaped crushing cavity design effectively enhances the crushing efficiency, which can be 15%-20% higher than that of traditional models.
Technical highlights: For high-hardness materials like quartz, the moving jaw assembly of the jaw crusher usually adopts high-strength cast steel, increasing the bearing capacity by 30%. This ensures that the equipment can maintain a long-term stable crushing force when facing common hard quartzite, and is less prone to fatigue damage.

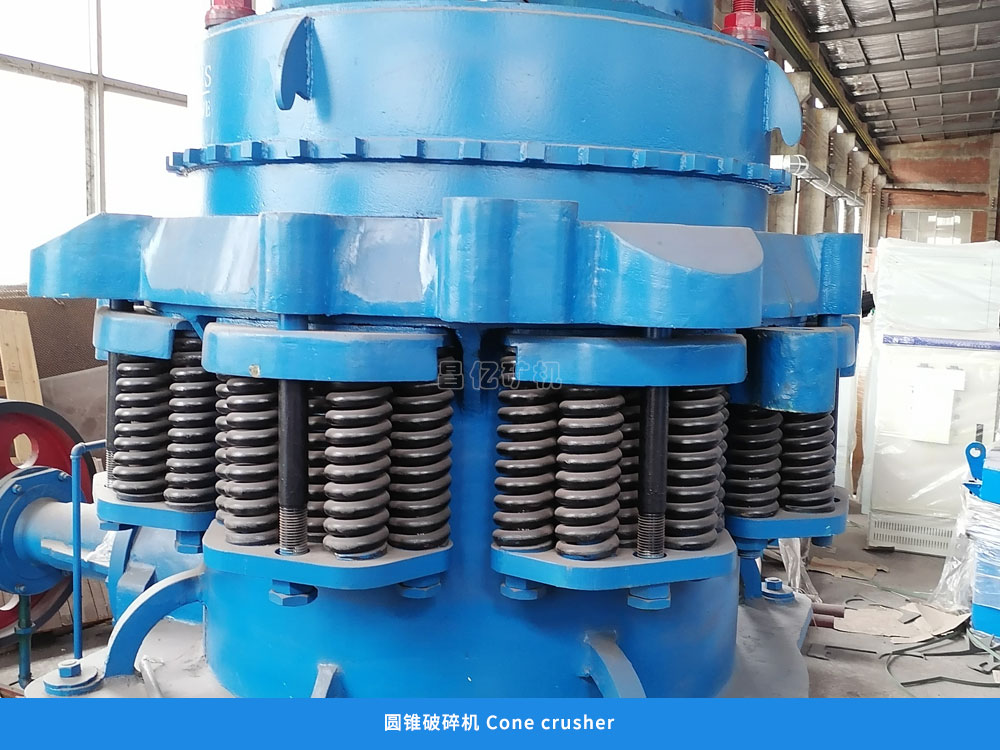

3. The Main Crushing Force: Cone Crusher
The material after coarse crushing, although smaller, is irregular in shape with a high content of needle-like particles. At this point, a cone crusher is needed.
Core Responsibilities: Further crush materials below 250mm to below 40mm, providing a uniform particle size and excellent-shaped "semi-finished product" for the subsequent sand-making process. It adopts the principle of extrusion crushing, allowing the material to be mutually compressed in the crushing cavity, making the crushed particles more cubic and significantly reducing the content of needle-like particles (can be controlled below 5%).
Technical Highlights: Quartz stone has high hardness, which is a huge test for the wear of the crusher liner. The full-rolling bearing eccentric sleeve design of the cone crusher not only has a low friction coefficient and fast heat dissipation, but also reduces the unit energy consumption by 20%-30% compared to traditional equipment. More importantly, it is equipped with a PLC intelligent control system that can monitor the position and pressure of the main shaft in real time. Once encountering uncrushable objects such as iron blocks, the system will automatically reset, protecting the equipment from damage and greatly reducing downtime for maintenance.

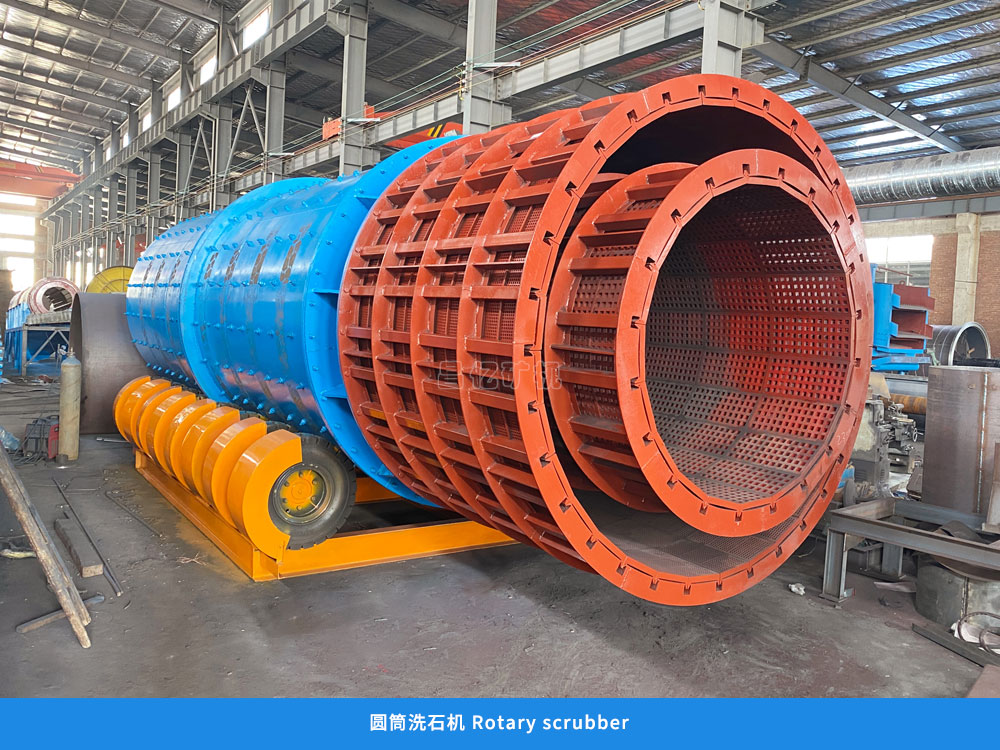

4. The Cleaning Powerhouse: Rotary Scrubber
When the particle size of the material reaches below 40mm, it enters the core cleaning process that determines the quality of the finished product. At this point, the rotary scrubber takes on the crucial task of "cleaning" the crushed stone.
Core Responsibilities: By means of the powerful flushing of the rotating cylinder and the internal high-pressure water flow, it strips away the soil, dust, and adhered impurities on the surface of the quartz stone. The inner wall of the cylinder is usually made of perforated steel plate or woven wire mesh, and the size of the sieve holes can be flexibly adjusted according to the particle size of the material, ensuring the cleaning effect without causing the loss of fine materials.
Technical Highlights:
Integrated Layering and Screening: The cylinder is equipped with a layering device inside, which uses density differences to achieve effective separation of ore and impurities. The double-layer sieve at the end of the cylinder can also classify the cleaned quartz stone, directly producing finished products in different specifications such as coarse, medium, and fine.
Wear-Resistant and Energy-Saving Design: The inner wall of the cylinder is made of wear-resistant materials, which can resist the long-term flushing of quartz stone and extend the service life of the equipment. The equipment adopts the principles of hydraulic washing and gravity separation, without the need for chemical agents, has low energy consumption, and meets current environmental protection production requirements.

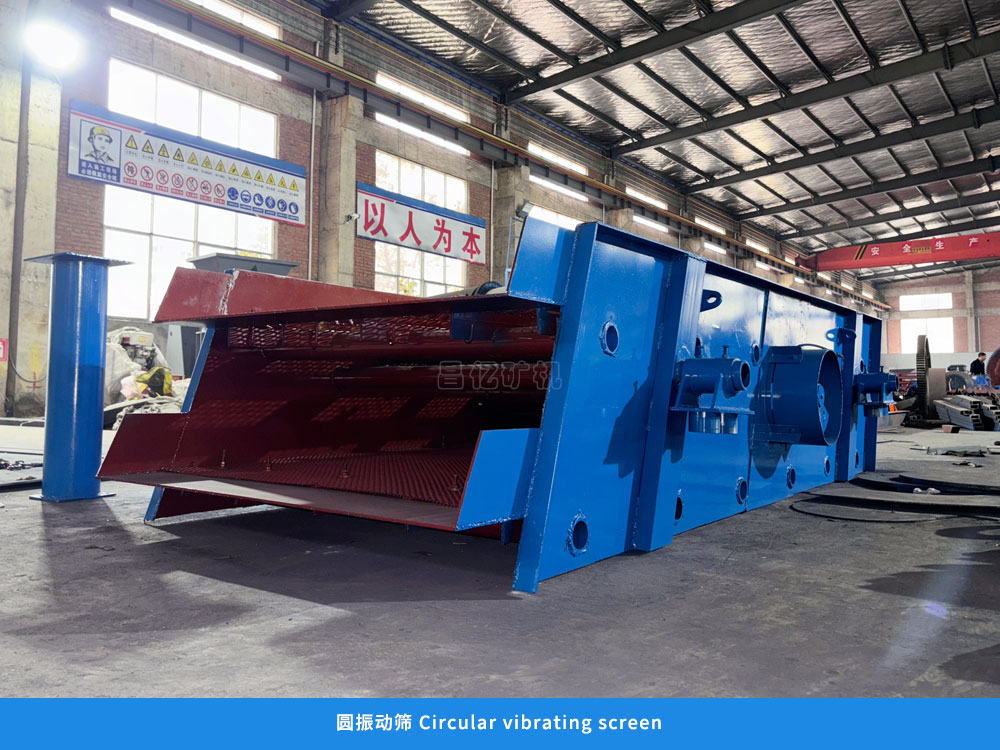

5. Sieve Separation & Fine Sand Recovery：Circular Vibrating Screen and Fine Sand Recovery Machine
The broken and cleaned materials are mixed, with sizes varying from large to small. The circular vibration screen is responsible for separating the finished products from the unqualified ones. The fine sand recovery machine, through the combination of a hydraulic cyclone and a dewatering screen, recovers fine sand from the wastewater, achieving maximum resource utilization.
Core Responsibilities: The circular vibration screen, through multi-layer screens with different aperture sizes, precisely classifies the cleaned materials into different specifications of finished products such as 0-10mm (mechanical sand) and 10-30mm (walnut slices) through high-frequency vibration.
Technical Highlights: The combination of the circular vibration screen and the fine sand recovery machine ensures that all outgoing products meet the particle size requirements, while also realizing the recycling of water resources.
Conclusion

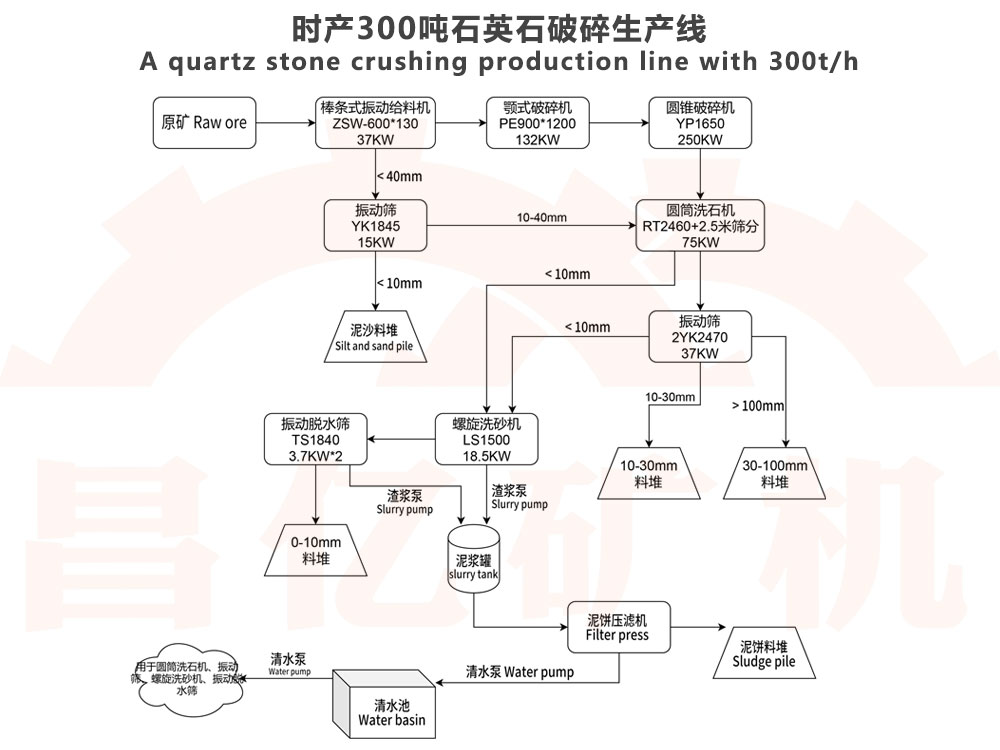

A successful 300-ton per hour quartz stone crushing production line is not just a simple stacking of several machines. It involves the "pre-screening" of the vibrating feeder, the "coarse crushing" of the jaw crusher, the "fine crushing" of the cone crusher, the "cleaning" of the cylindrical stone washer, the "screening" of the vibrating screen, and the collaborative operation of the fine sand recovery machine. Each machine has its own role and works closely together to convert the hard quartz stone into uniformly granulated high-quality sand and stone.
If you are planning a new quartz stone crushing production line or upgrading an existing one, this in-depth analysis aims to provide you with valuable reference. From equipment selection to process design, every detail deserves our pursuit of perfection.
Frequently Asked Questions (FAQ)
Q1: Why is the combination of "Jaw Crusher + Cone Crusher + Washing Machine" commonly chosen for quartz stone crushing production lines? Because quartz stone has high hardness (Mohs hardness 7) and strong abrasiveness. The jaw crusher is responsible for efficient coarse crushing, the cone crusher uses the principle of lamination for medium and fine crushing, which can effectively reduce energy consumption and wear. The cylindrical washing machine is specialized in cleaning, which can effectively remove soil and impurities on the surface of the stone material. The combination of the three is the most mature and cost-effective solution for processing high-hardness and high-abrasive materials.
Q2: What are the requirements for a production line with a capacity of 300 tons per hour in terms of site and infrastructure? This scale of production line usually requires about 2,000-3,000 square meters of land. In terms of infrastructure, solid concrete foundations need to be cast for heavy equipment such as jaw crushers and cone crushers, and reasonable material transportation, storage, and drainage systems should be designed. It is recommended to consider environmental protection requirements, such as enclosed workshops and dust removal systems, at the planning stage.
Q3: How to reduce the operation cost of the production line? The core lies in "replace grinding with breaking," that is, by optimizing the crushing process, reducing the energy consumption in the subsequent grinding stage. At the same time, selecting wear-resistant consumables (such as high-chromium alloy wear plates) and utilizing automated control systems to achieve the optimal operating conditions of the equipment, avoiding idling or overloading, is the key to reducing the cost per ton.
Q4: What fields are the quartz stones produced on this production line mainly used in? The high-quality quartz stones processed by this production line have uniform particle size, high cleanliness, and low mud content, and are widely used as raw materials for photovoltaic glass, filling materials for high-end boards, sand for precision casting, and high-standard construction aggregates such as expressways.
Finally, for equipment selection advice or process optimization solutions, please contact the Changyi Mining Machinery technical team.
