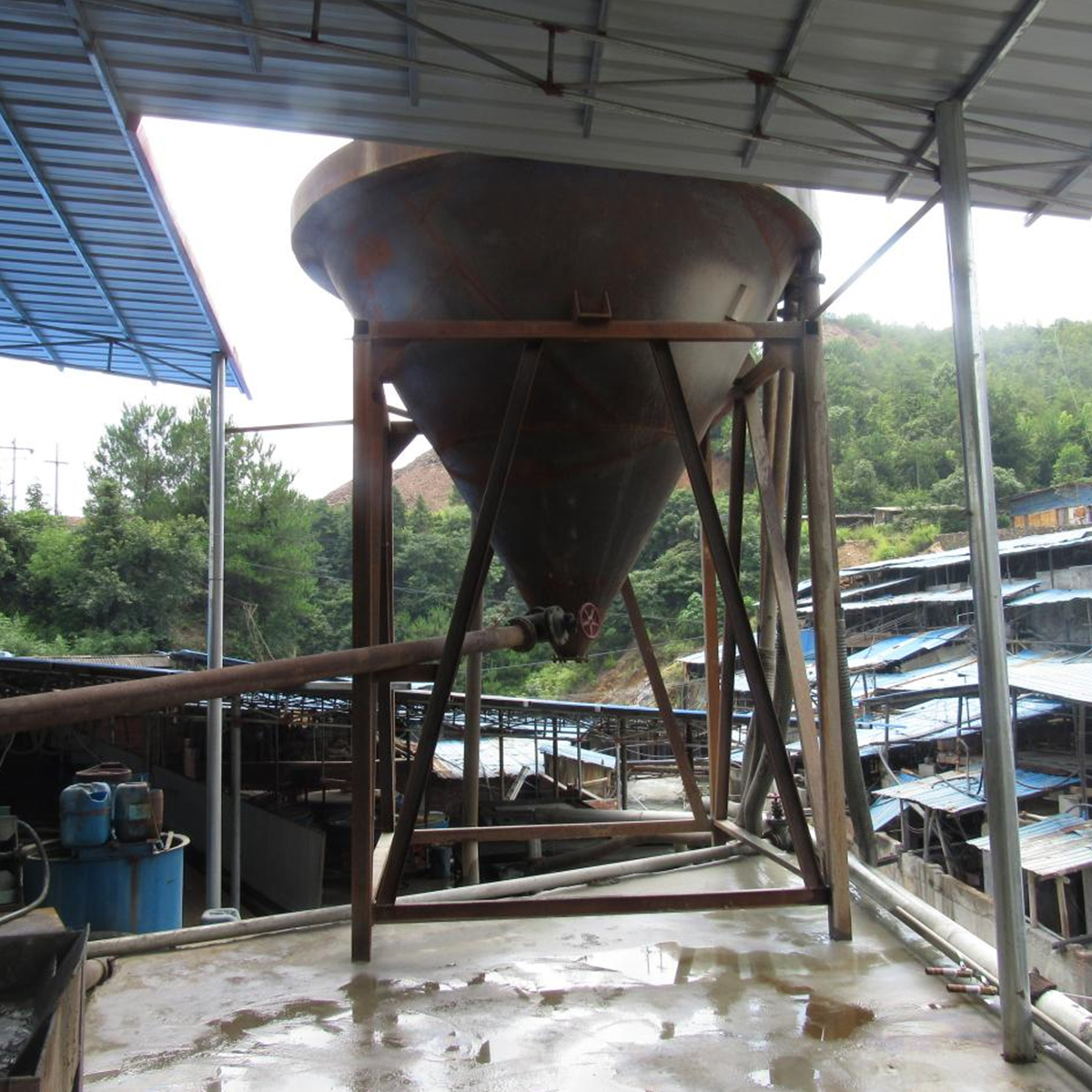

The Dividing Mud Bucket is a specialized mud classifier designed for efficient ore desludging and feed control. Featuring a simple cone structure, this mineral classification tank enables precise slurry feed regulation before spiral chutes, shaking tables, or grinding units. As the slurry is tangentially fed into the tank center, it radiates toward the overflow weir, while heavier particles settle efficiently in the conical base for discharge.
This high-efficiency slurry control equipment is widely used for mineral classification, ore concentration, and sludge removal, enhancing performance across mining operations and mineral processing lines.
| Model | Settlement Area (㎡) | Volume (m³) | Feeding Size (mm) | Discharge Concentration (%) | Capacity (㎡/t) | Weight (t) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| CY-1000 | 0.78 | 0.27 | <0.2 | 40-60 | 4.5–52 | 0.5 | Φ1264×1529 |
| CY-1500 | 2 | 0.83 | <0.2 | 40-60 | 4.5–52 | 1 | Φ1804×2115 |
| CY-2000 | 3 | 2.27 | <0.2 | 40-60 | 4.5–52 | 1.5 | Φ2404×2715 |
| CY-2500 | 4.9 | 4 | <0.2 | 40-60 | 4.5–52 | 1.9 | Φ2906×3328 |
| CY-3000 | 7 | 6.65 | <0.2 | 40-60 | 4.5–52 | 2.1 | Φ3406×3925 |
The dividing mud bucket is commonly integrated before hydraulic classifiers to enhance classification efficiency. It is also used in front of grinding systems for ore thickening and dewatering, helping to raise feed concentration. Additionally, it supports slurry flow control in mineral separation systems and acts as a temporary ore storage tank due to its large conical volume.
This slurry feed control equipment plays a vital role in fine ore desludging and concentrate preparation across gold, tin, tungsten, and rare earth beneficiation lines.
