Product Overview

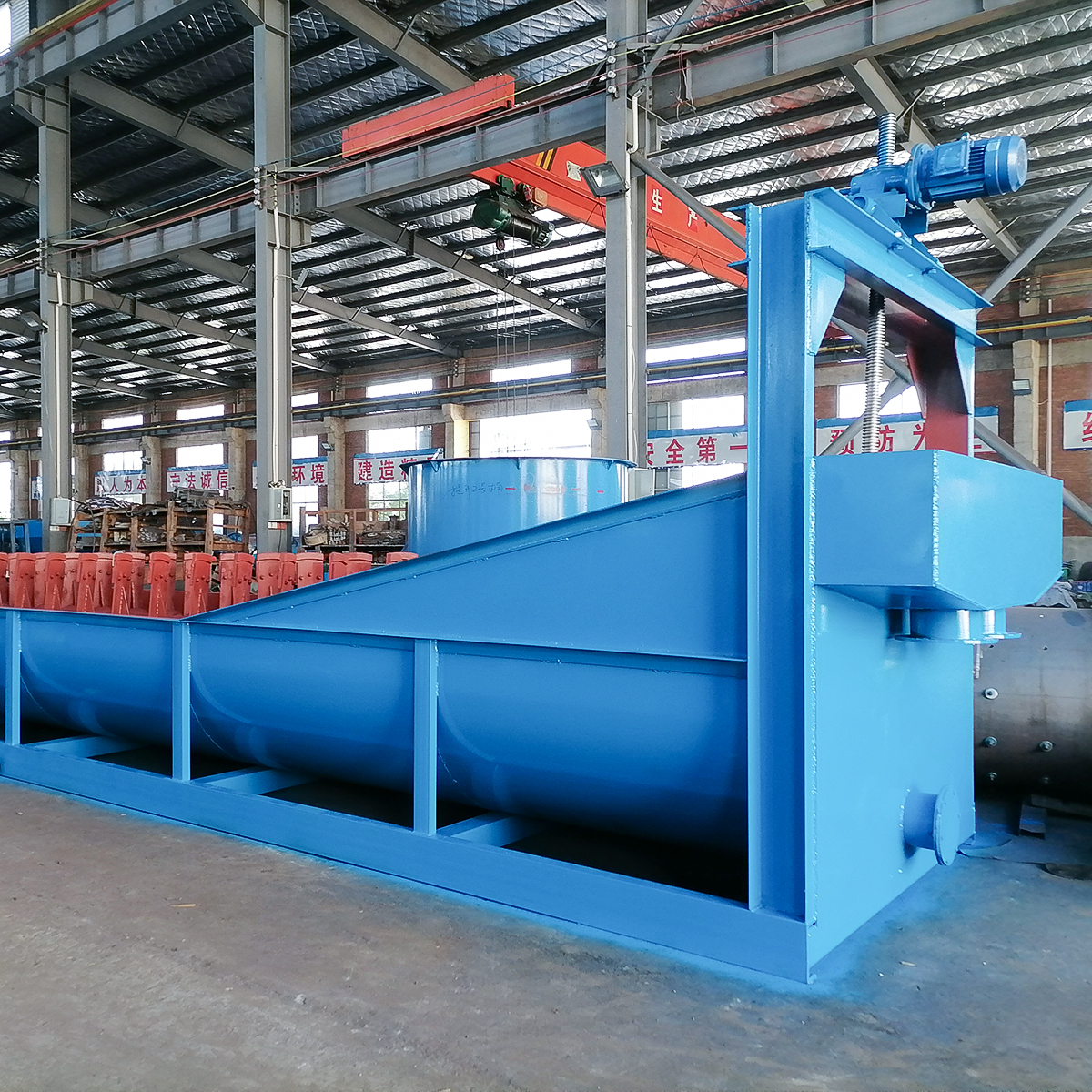

The Log Washer is a high-efficiency washing machine used primarily for cleaning ores such as quartz, manganese, iron, phosphate, and other minerals. It is designed to remove silt, stains, and other impurities from low-grade ores and materials, improving their quality and making them suitable for further processing.
The log washer is especially useful in washing materials that contain tough, insoluble clays, conglomerates, or soft stones. Its robust design ensures efficient washing, separating contaminants and ensuring that only the cleanest materials proceed to the next stage of processing. This equipment is essential in industries such as construction, mining, aggregate production, and hydroelectric projects.
Key Features
- High Efficiency: Effectively removes mud, clay, silt, and impurities from ores, improving the quality of the material.
- Multi-Application: Suitable for washing various materials including manganese ore, iron ore, and quartz ore.
- Heavy-Duty Design: Built with a durable construction to handle tough materials and ensure long-lasting performance.
- Energy-Efficient: Low power consumption while maintaining high throughput, reducing operational costs.
- Easy Maintenance: Simple structure that allows for easy inspection and maintenance, ensuring minimal downtime.
Technical Specifications
| Model |
Spiral Size (mm) |
Rotary Speed (r/min) |
Feeding Size (mm) |
Tank Slope (°) |
Capacity (t/h) |
Power (kw) |
| 2RXL320 |
320*3200 |
28 |
≤30 |
≤12 |
10 |
4 |
| 2RXL400 |
400*4600 |
23 |
≤30 |
≤12 |
20 |
5.5 |
| 2RXL540 |
540*4600 |
23 |
≤30 |
≤12 |
20-40 |
11 |
| 2RXL750 |
750*7600 |
22.7 |
≤70 |
≤12 |
30-60 |
18.5 |
| 2RXL914 |
914*7600 |
32 |
≤70 |
≤12 |
40-80 |
37 |
| 2RXL1200 |
1200*7600 |
19 |
≤70 |
≤12 |
50-100 |
45 |
Application Scenarios
The Log Washer is widely used in industries that require the cleaning of coarse and fine aggregates. Some key applications include:
- Construction Sites: Washing sand and gravel, removing soil and impurities, ensuring the quality of concrete aggregates.
- Sand and Gravel Plants: Improving the quality of sand and gravel products to meet various grade requirements.
- Prefabrication Plants: Ensuring the quality of aggregate materials used in precast concrete production.
- Hydroelectric Sites: Washing gravel and stones used in water conservancy projects to ensure clean materials.
- Mineral Processing: Used for desliming, dewatering, and washing ores like manganese, iron, and phosphate.
- Gravel Road Construction: Cleaning gravel to ensure better quality for road construction materials.
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
