The 6-S shaking table is a highly efficient and precision-engineered gravity separation table used for processing fine-grained minerals. Designed with advanced separation technology, it separates mineral particles of varying specific gravities by utilizing a combination of horizontal shaking motion and water flow. The 6-S table is widely used in the mining industry for fine gold recovery, rare metal beneficiation, and mineral concentration.

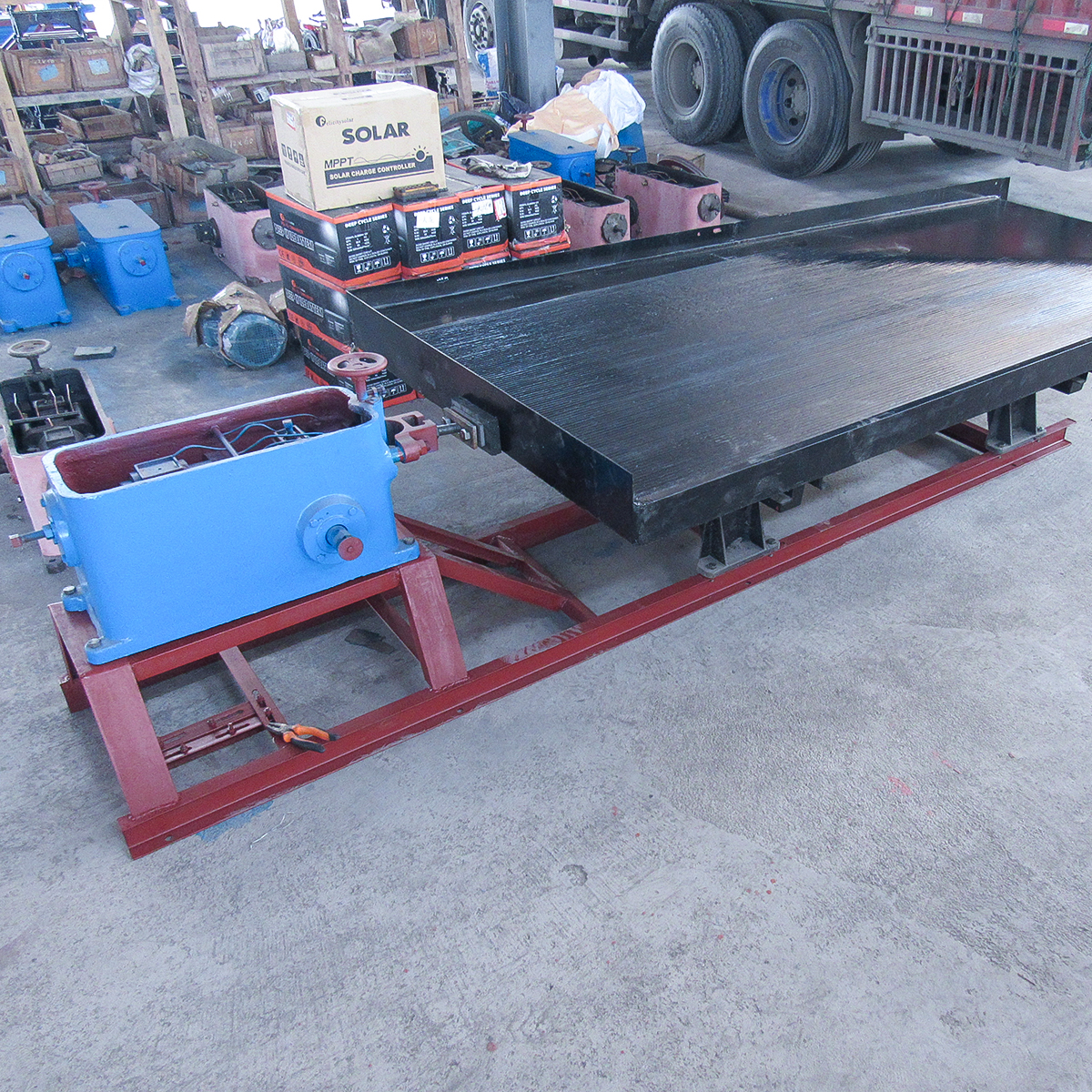

This gravity separation equipment is composed of a sloped table deck covered with riffles, a head motion driving system, and adjustable water distribution channels. During operation, a slurry of mixed minerals is fed onto the deck, and as the table vibrates longitudinally, lighter particles move to the top while heavier particles settle and move downward. This process results in an efficient stratification and separation of minerals into high-grade concentrate, middlings, and tailings.
The 6-S shaking table is suitable for handling a wide range of particle sizes, including coarse sand (2–0.5 mm), fine sand (0.5–0.074 mm), and slurry or ore mud (<0.074 mm). It can perform a variety of separation tasks including roughing, cleaning, and scavenging operations, making it ideal for both initial mineral extraction and tailings reprocessing.
The equipment is highly effective in recovering valuable minerals such as gold, tungsten, tin, niobium, tantalum, iron, manganese, and ferro-titanium. It is also widely applied in non-traditional sectors like e-waste recycling, slag treatment, and industrial waste metal recovery. The 6-S shaking table’s low energy consumption, minimal water usage, and high concentrate recovery rate make it one of the most environmentally friendly and cost-effective solutions for fine particle separation in the modern mining and recycling industries.
Constructed with corrosion-resistant materials and a rigid frame, the 6-S shaking table is built to withstand demanding industrial environments. Its deck angle and stroke length are fully adjustable, allowing users to fine-tune performance based on material characteristics. Whether deployed in a large-scale mineral processing plant or a small pilot operation, the 6-S gravity separation table delivers reliable and consistent results.
| Model | Deck Type | Deck Area (m²) | Deck Size (L×W, mm) | Max Feed Size (mm) | Capacity (t/h) | Feed Density (%) | Stroke (mm) | Stroke Frequency (r/min) | Water Usage (t/h) | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-S 7.6 | Coarse/Fine/Slurry | 7.6 | 4500×1850/1550 | 2–0.074 | 1–1.2 | 15–30 | 8–22 | 220–280 | 0.4–1 | 1.1 |
| 6-S 4.08 | 3 Type Optional | 4.08 | 3000×1320/1100 | 2–0.1 | 0.4–1.5 | 10–30 | 6–30 | 210–320 | 0.3–1.5 | 1.1 |
| 6-S 1.95 | 3 Type Optional | 1.95 | 2100×1050/850 | 2–0.074 | 0.3–0.8 | — | 12–28 | 250–450 | 0.2–1 | 1.1 |
| 6-S 0.5 | 3 Type Optional | 0.5 | 1100×500/430 | 2–0.074 | 0.05–0.2 | — | 9–17 | 280–460 | 0.1–0.5 | 1.1 |
The 6-S shaking table is ideal for gravity separation of fine particles in multiple sectors:
Total shipping volume is approximately 6.3 m³ with a gross weight of 845 kg:
All parts are securely packaged in reinforced wooden cases with anti-corrosion treatment and suitable for sea and land transportation.
